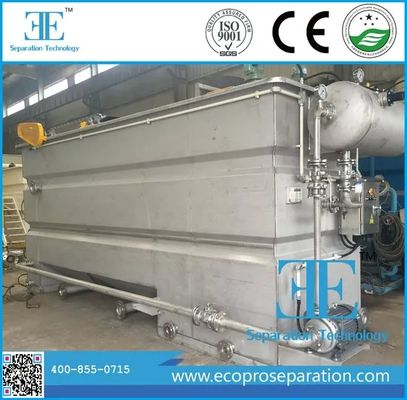

DAF System Dissolved Air Flotation for Printing and Dyeing Industrial Wastewater Treatment
DAF System Introduction
Dissolved Air Flotation is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids.
The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air atmospheric pressure in a flotation tank basin.
The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
Dissolved Air Flotation Working Process
The wastewater enter RT1 (coagulation reaction tank) and RT2 (flocculation reaction tank) from the equalization tank through the lift pump, and coagulates with PAC, floculates with (PAM) respectively form the flocs.
Then the wastewater and dissolved water enter the reaction zone of the DAF tank, and the microbubbles and flocs in the dissolved water are mixed and adhered to form solid particles, which the density less than water, and float up to the surface of the DAF tank.
Under the action of buoyancy, scum is scraped to the slag tank. The clean water is collected down to the collect tank through the water collecting pipe, and most of the outer water is discharged (or into the next process), and a small part of the water is recirculated to form the dissolved water.
DAF System Advantages
- High efficiency dissolved air system efficiency reaches at least 95%
- Liquid level controlling for automatic slagging scum moisture content less than 98%
- Non-clogging, easy maintenance
- Stable treatment efficiency, automatic control, unattended operation
- Small footprint, high effluent quality, low investment
How to Select the Right Model
- Wastewater type (dairy wastewater, car washing wastewater, slaughter house wastewater, food wastewater, river water)
- SS content (ppm or mg/L)
- Oil & Grease & Fat & FOG content (ppm or mg/L)
- PH (6~9 is preferred. Otherwise consider PH adjust tank before DAF tank)
- BOD (ppm or mg/L)
- COD (ppm or mg/L)
Application of DAF System
- Municipal Sewage
- Slaughter House
- Metallurgical Industry Wastewater
- Spraying Sewage
- Printing & Dyeing Sewage
- Metal-Processing Sewage
- Mining Stone Wastewater
- Electronic Sewage
Project for Reference
Company Profile
Shanghai Ecopro Environmental Engineering Co.,Ltd. the flagship company, focus on one-stop water & wastewater treatment equipments and separation service environment, as a professional environmental engineering, since its inception, we always adhere to the spirit of craftsmanship, to provide the industry with equipments and services and systematic solutions.
