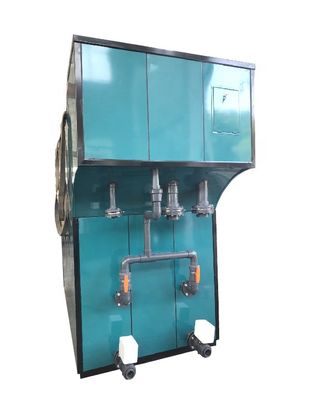

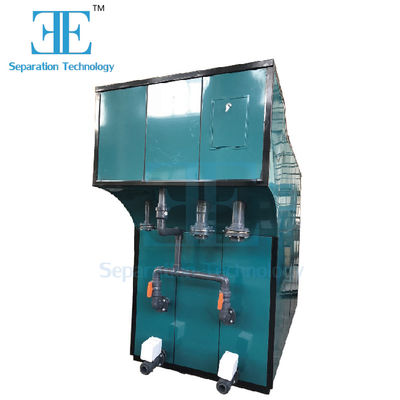

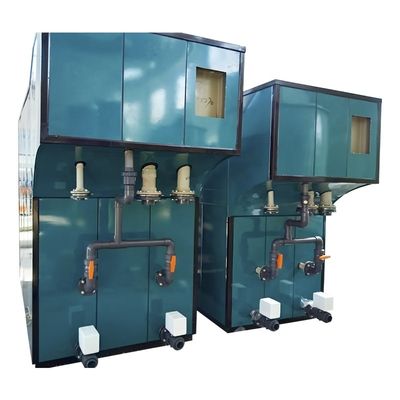

40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW

Gambar besar : 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW

Detail produk:

Tempat asal:	Shanghai, Cina
Nama merek:	ECOPRO

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	$36,897

Kontak

Detil Deskripsi produk

Produktivitas:	40m3/jam	Berat:	2298kg
Jenis pemrosesan:	Penyaringan	Kekuatan:	3 kW, 30 kw, 20 kW
Voltase:	220 V, 380 V, 110 V	Kapasitas:	40m3/jam
Berat Elektroda:	11500kg	Berat kosong:	3500 kg
Operasi Berat:	31000 kg	Kapasitas memperlakukan:	1m3/jam
Konsumsi daya:	3KW/H.	Dimensi:	10006501500mm
Berat Elektroda:	650 kg	Berat kosong:	400 kg
Operasi Berat:	1500 kg
Menyoroti:	40m3/h electrocoagulation wastewater system , electrocoagulation system 3-30 kW , industrial wastewater treatment electrocoagulation

Electrocoagulation System for Wastewater Treatment

Our electrocoagulation equipment is an advanced water treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system typically uses aluminum, iron, and other cost-effective metals for optimal performance.

Technical Specifications

Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Working Principle

The electrocoagulation system operates through electrochemical reactions:

Electrochemical reaction: Fe→Fe²⁺+2e
Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e (nascent oxygen has strong oxidation function)
Cathode reduction: 2H⁺+2e→2[H]→H₂ (nascent hydrogen breaks bonds and functional groups)

These oxidation and reduction functions occur continuously on the plates for effective water treatment.

Key Features

Wide power adaptability: Operates within 220V-480VAC range
Safe operation: Embedded isolated voltage circuit with multiple protection mechanisms (phase loss, overload, overcurrent, etc.)
Automatic control: Detects ion state in water to automatically adjust current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as excellent coagulants without requiring polymers

About Our Company

Shanghai Ecopro Environmental Engineering Co., Ltd., established in 2017, specializes in comprehensive water and wastewater treatment equipment and separation services. As professional environmental engineers, we provide industry-leading equipment, services, and systematic solutions including static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.
