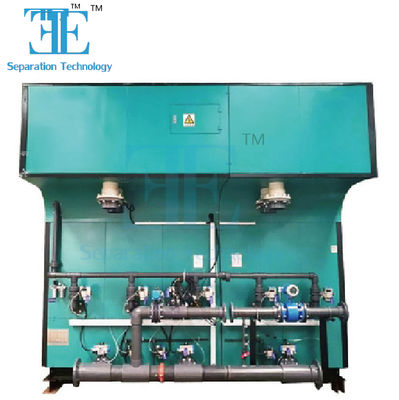

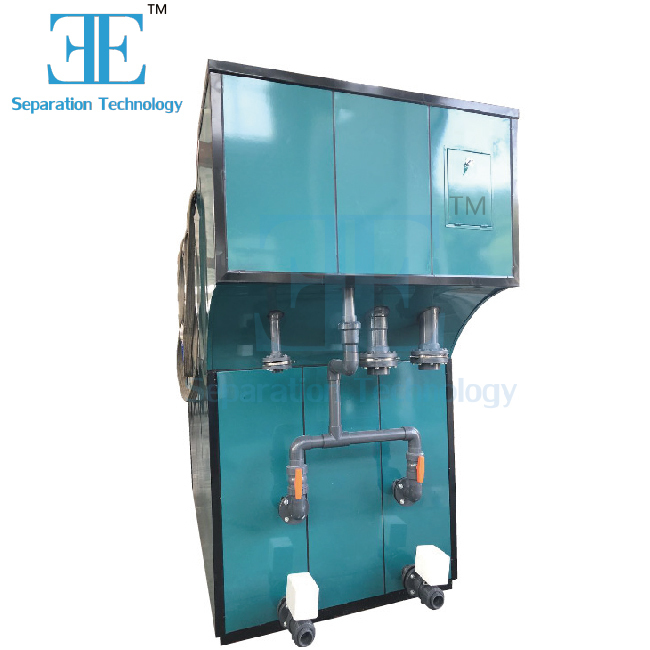

Electrocoagulation System 5m3/h Capacity for Wastewater Treatment

Gambar besar : Electrocoagulation System 5m3/h Capacity for Wastewater Treatment

Detail produk:

Tempat asal:	Shanghai, Cina
Nama merek:	ECOPRO

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	$36,897

Kontak

Detil Deskripsi produk

Produktivitas:	5m3/jam	Berat:	1900 kg
Jenis pemrosesan:	Penyaringan	Kekuatan:	1 kw
Voltase:	220 V, 380 V, 110 V	Kapasitas:	5m3/jam
Berat Elektroda:	1900 kg	Berat kosong:	1900 kg
Operasi Berat:	7800 kg	Komponen inti:	Motor
Rentang catu daya:	220V-480VAC	Materi anoda:	Aluminium, besi
Fungsi oksidasi:	Oksigen baru [o]	Fungsi reduksi:	Hidrogen yang baru lahir [H]
Kontrol Otomatis:	Ya
Menyoroti:	Electrocoagulation System 5m3/h capacity , Electrocoagulation System for wastewater treatment , Electrocoagulation System with high capacity

Electrocoagulation System for Wastewater Treatment

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide flocculation to effectively remove contaminants. The system employs aluminum or iron anodes to create an efficient and cost-effective purification process.

System Fabrication Process

System Operation Process

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe2++2e
Anodizing reaction: 2OH→2[O]+2e→O2+2e
Cathode reduction: 2H++2e→2[H]→H2

These oxidation and reduction reactions occur continuously on the plates, providing powerful treatment capabilities.

Key System Features

Wide power supply adaptability: Operates within 220V-480VAC range
Enhanced safety: Embedded isolated voltage circuit with comprehensive protection (phase loss, overload, overcurrent, overvoltage, zero voltage)
Automatic control: Detects ion state in water to automatically adjust current and voltage
Energy efficient: Utilizes Fe(OH)2 and Fe(OH)3 as natural coagulants, eliminating need for polymer additives

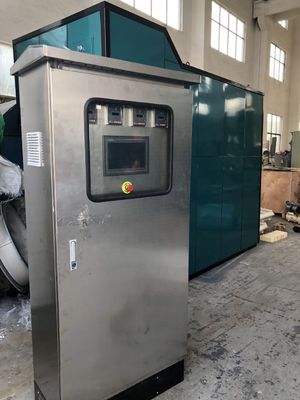

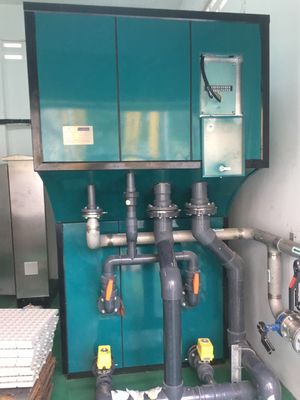

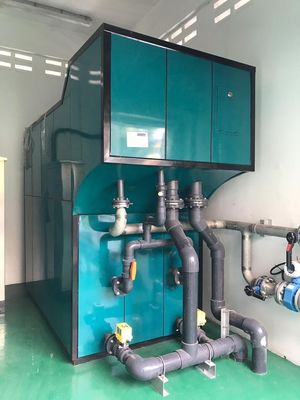

System Work Site Examples

Product Packaging

Label:

Kontak Person: Shirley

Tel: 86-17320131993

Faks: 86-21-58900516
