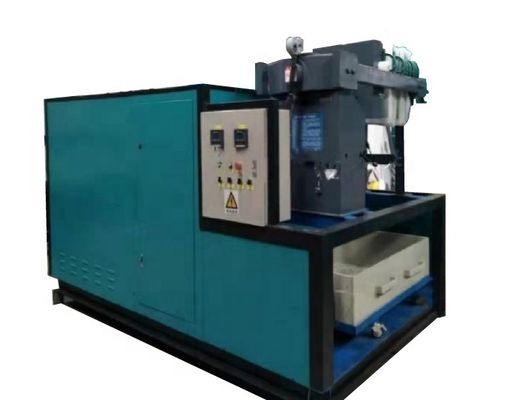

5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

Gambar besar : 5m3/h Electrocoagulation System for Wastewater Treatment 220V-380V

Detail produk:

Tempat asal:	Shanghai, Cina
Nama merek:	ECOPRO

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	$36,897

Kontak

Detil Deskripsi produk

Produktivitas:	5m3/jam	Berat:	1900 kg
Jenis pemrosesan:	Penyaringan	Kekuatan:	1 kw
Voltase:	220 V, 380 V, 110 V	Kapasitas:	5m3/jam
Berat Elektroda:	1900 kg	Berat kosong:	1900 kg
Operasi Berat:	7800 kg	Komponen inti:	Motor
Rentang catu daya:	220V-480VAC	Materi anoda:	Aluminium, besi
Fungsi oksidasi:	Oksigen baru [o]	Fungsi reduksi:	Hidrogen yang baru lahir [H]
Kontrol Otomatis:	Ya
Menyoroti:	5m3/h electrocoagulation wastewater treatment system , electrocoagulation system 220V-380V , industrial wastewater electrocoagulation system

Electrical Coagulation System Electrocoagulation Air Flotation Wastewater Treatment Equipment

Electrocoagulation Machine Electrocoagulation Tanks Electrocoagulation Water Treatment
Electrocoagulation system is a wastewater treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron and other readily available and inexpensive metals.

Electrocoagulation System Fabricate Process

Electrocoagulation System Work Process

Electrocoagulation System Principle

Electrochemical reaction: Fe->Fe2++2e
Anodizing reaction: 2OH-->2[O]+2e->02+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.
Cathode reduction: 2H++2e->2[H]->H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.
The above oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

Wide adaptability of power supply: 220V-480VAC range is available
Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; various abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.)
Automatic control: can automatically detect the ion state in the water to adjust the current and voltage
Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need for polymer is a major feature of this equipment

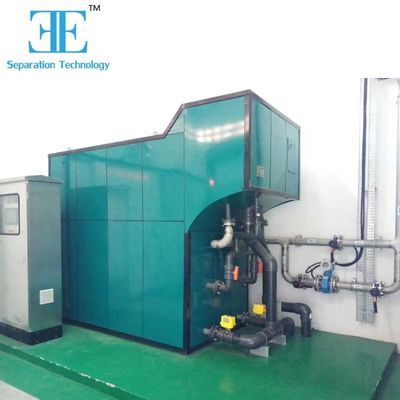

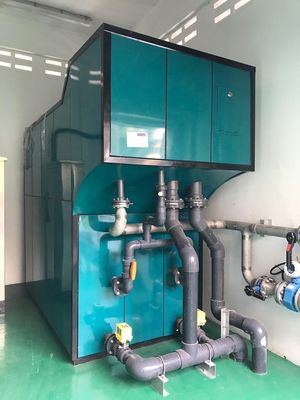

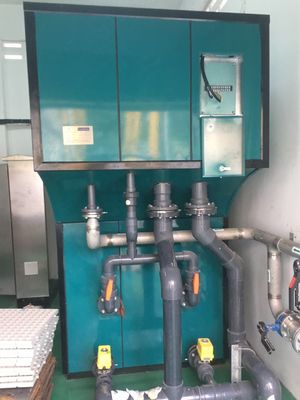

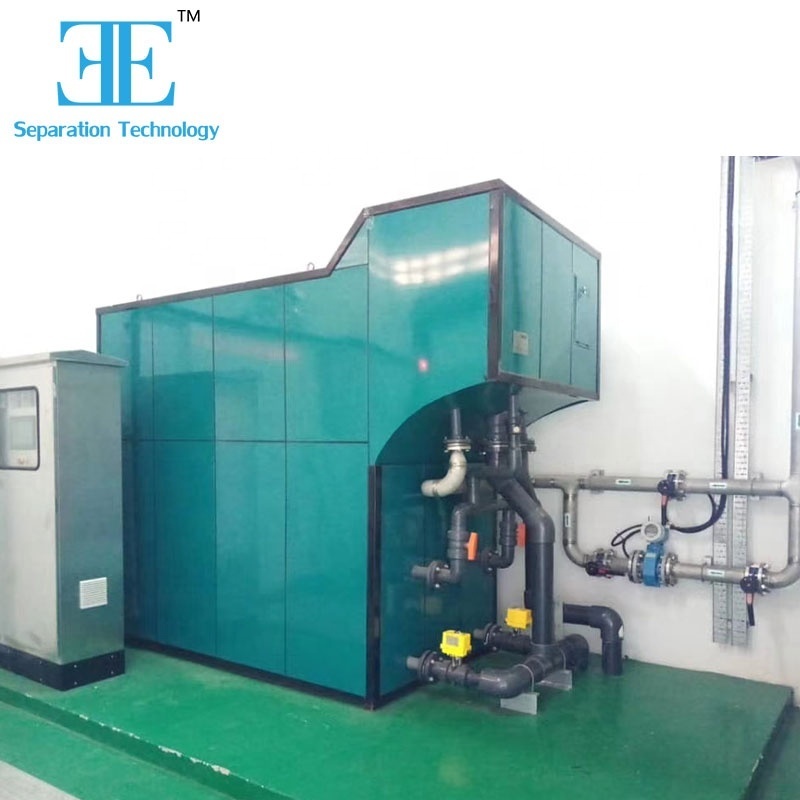

Electrical Flocculation System Work Site for Reference
